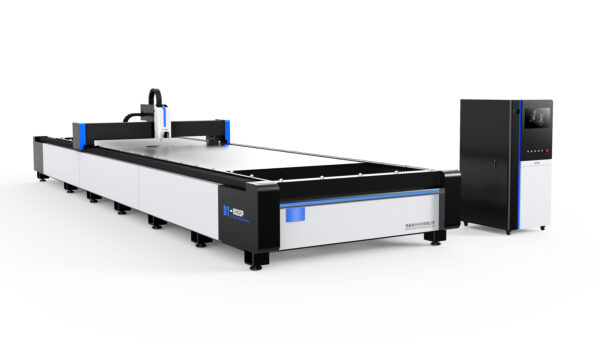

G series industrial laser cutting machine

SKU: TW3015FG Categoría: Etiquetas: , , , Marca:

The G is an ideal entry level planar laser cutting machine.Don’t need to input the high purchase cost and training cost, laser cutting can be realized.

Machine Features:
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
5. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
6. It could ut mental in various materials and realize excellent and stable cutting effects.

Model
G series

Working Area
3000*1500mm/4000*1500mm/4000*2000mm/
6000*2000mm
Laser Power
2000W/3000W/4000W/6000W
Laser source
Raycus/IPG/MAX
Transmission system
Double serve motor &gantry&rack&pinion
Motors & Drives
FUJI/YASKAWA
Laser Head
Raytools (auto focus for optional)
Electrical Components
Schneider
Electronic Proportional Valve
SMC
Reducer
Shimpo/Motoreducer
Rack & pinion
YYC
Guide rail
THK
CNC Controller
BCS100 V3.0
Software
CYPCUT
Chiller
S&A/HANLI
Max Idle Speed
100m/min
Max Acceleratio
1.2G
Positioning Accuracy
±0.03mm
Re-Positioning Accuracy
±0.02mm
Gross Power
<35 KW
Power Supply
Three-phase 380V/50Hz/60Hz
Gross Weight
3800KG

Peso 3500000 lbs
