One machine. Infinite possibilities. From H-beams to heavy plates — cut, bevel, and finish in a single pass.
H‑beam / Channel
Any profile up to 600mm height
Flat plate up to 50mm
Mild steel, stainless, aluminum
20kW speed
20mm carbon: 3x faster than 12kW
Air cutting ready
Slash gas costs on thick plate
Overview — built for structural steel

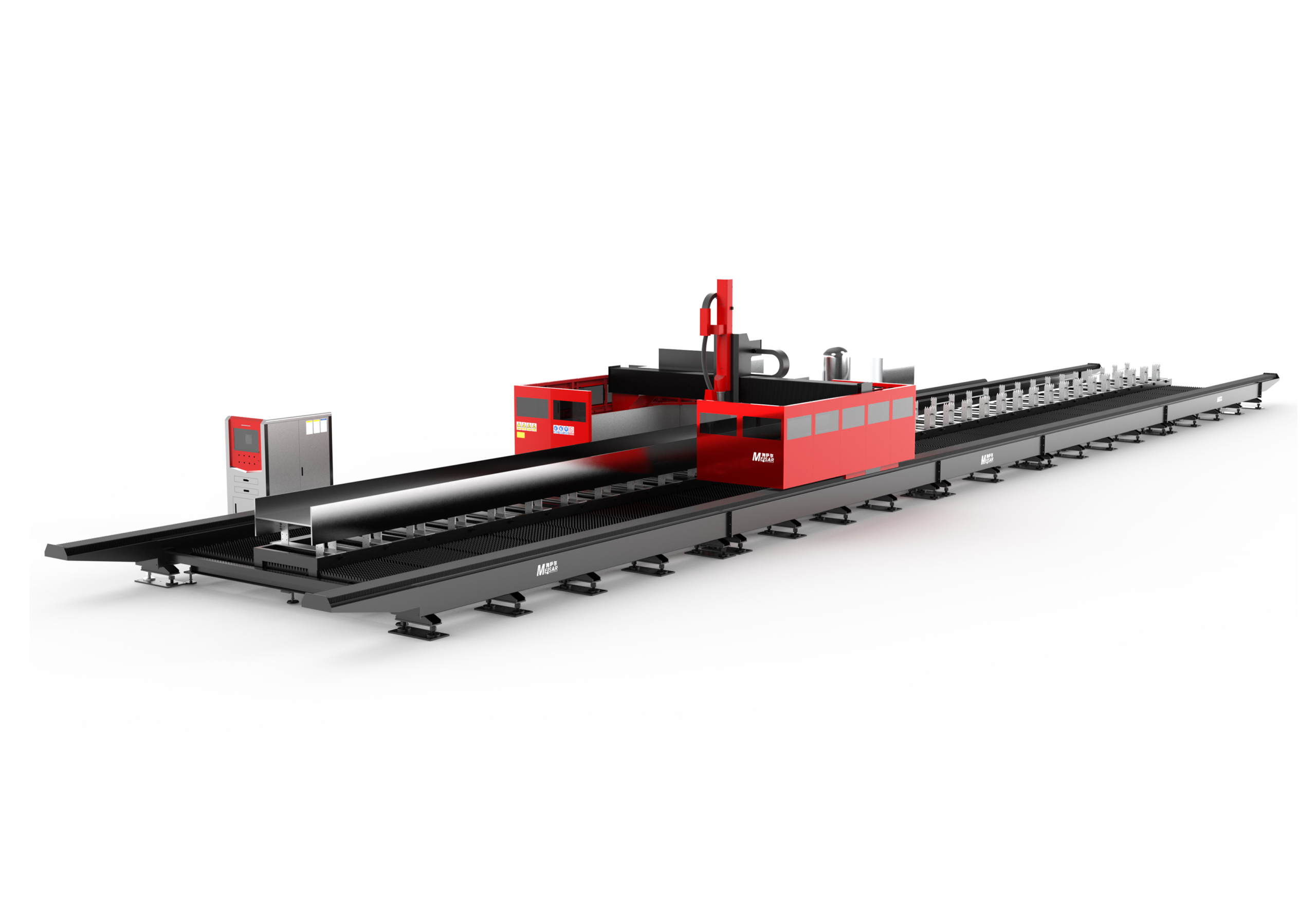

Flame and plasma are outdated. The HL‑Series gantry laser brings high precision to heavy fabrication. Cut I‑beams, channels, angles, and flat plates on one machine with zero tool changes. 20kW power means thick sections become fast, clean, and profitable.
Universal section & plate

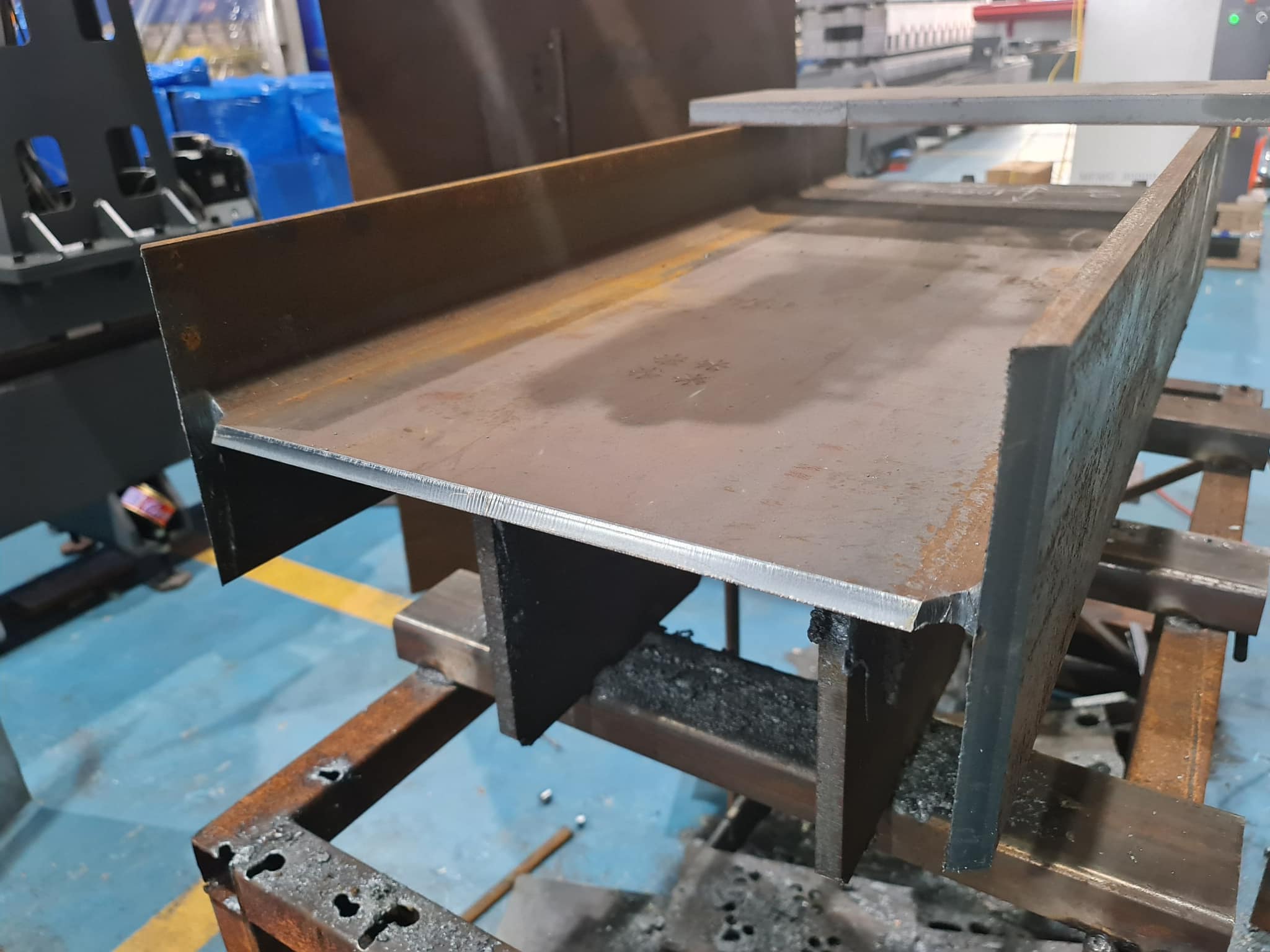

- All structural profiles: H, I, U, T, L, channels, rectangular/round tubes.
- Flat sheets: from thin gauge to 50mm plate – same bed.
- 3‑axis constant gap control: automatic section recognition prevents nozzle crash.
- Multi-torch option: dual cutting heads for angles/twin parts.
20KW thick‑plate dominance
- Mild steel: up to 50mm with oxygen, 30mm+ with air.
- Stainless steel: 30mm nitrogen cut – bright edges, dross‑free.
- Aluminum: 25mm+ high‑speed, no burr.
- Speed: 25mm plate at 2.2 m/min vs. 0.8 m/min (12kW).
Bevel cutting ±45°
Optional 5‑axis oscillating head cuts weld-ready bevels on flanges and edges. No secondary grinding, no milling — just perfect 30°–45° bevels for immediate welding.
Heavy‑duty gantry
Stress‑relieved welded frame + linear guides. Integrated follow‑up supports prevent beam sagging up to 12m lengths. 24/7 operation with zero thermal drift.
⚙️ Technical specifications
G‑Series configurable for your production
Flat plate capacity: up to 50mm mild steel / 40mm stainless / 25mm aluminum (with 20kW).
Industry applications
Shipbuilding
Frames, stiffeners, deck penetrations
Steel structures
Columns, beams, connection plates
Heavy machinery
Booms, chassis, undercarriage parts
Pipe racks / flanges
Offshore, petrochemical platforms
